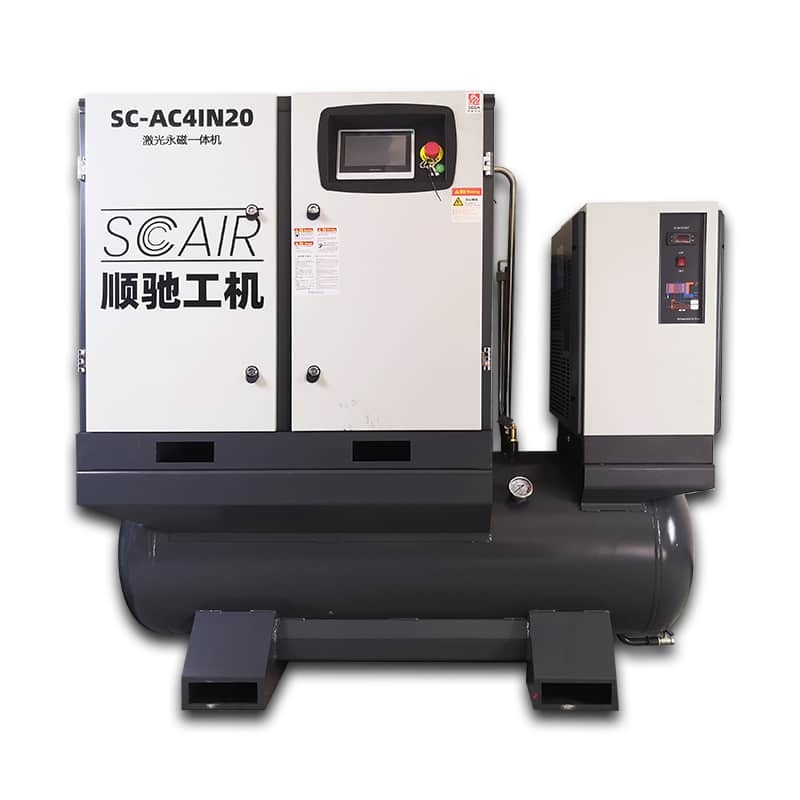

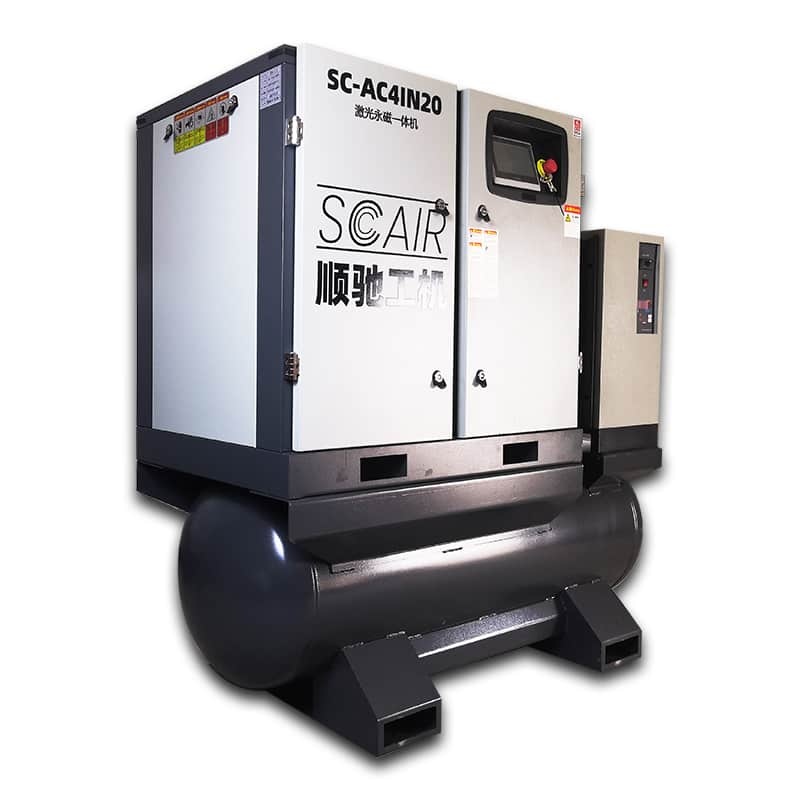

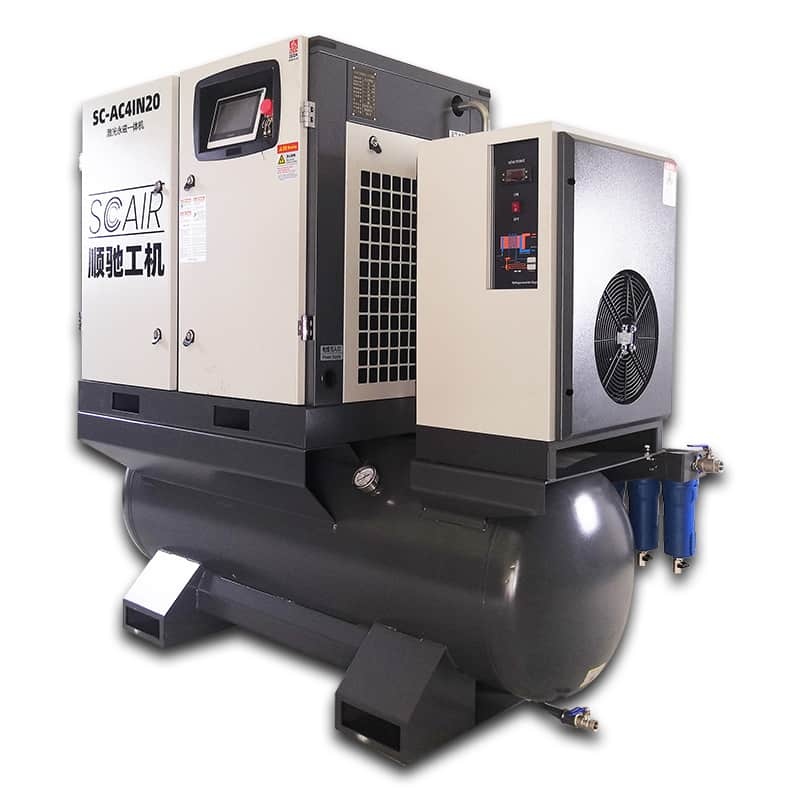

The Shunchi Machinery 20 HP 4-in-1 Rotary Screw Air Compressor is engineered to provide efficient air compression while taking up minimal space. Combining a 20 HP motor with integrated components, this compressor is perfect for industries looking for reliable performance and easy installation. Its design minimizes operating and maintenance costs, making it ideal for custom setups and bulk orders.
The Sunchi 4-in-1 screw air compressor is made of high-quality materials and is durable. Its compact design provides powerful air output while reducing the need for additional equipment. Ideal for continuous industrial use, this compressor meets the needs of factories, workshops and manufacturing facilities seeking a space-saving, cost-effective air compression solution.

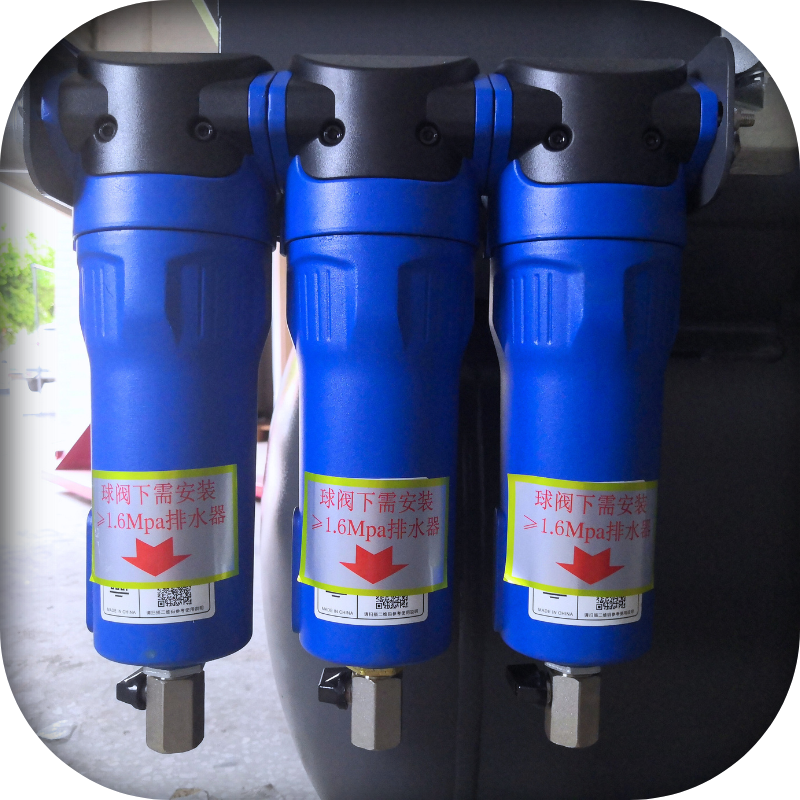

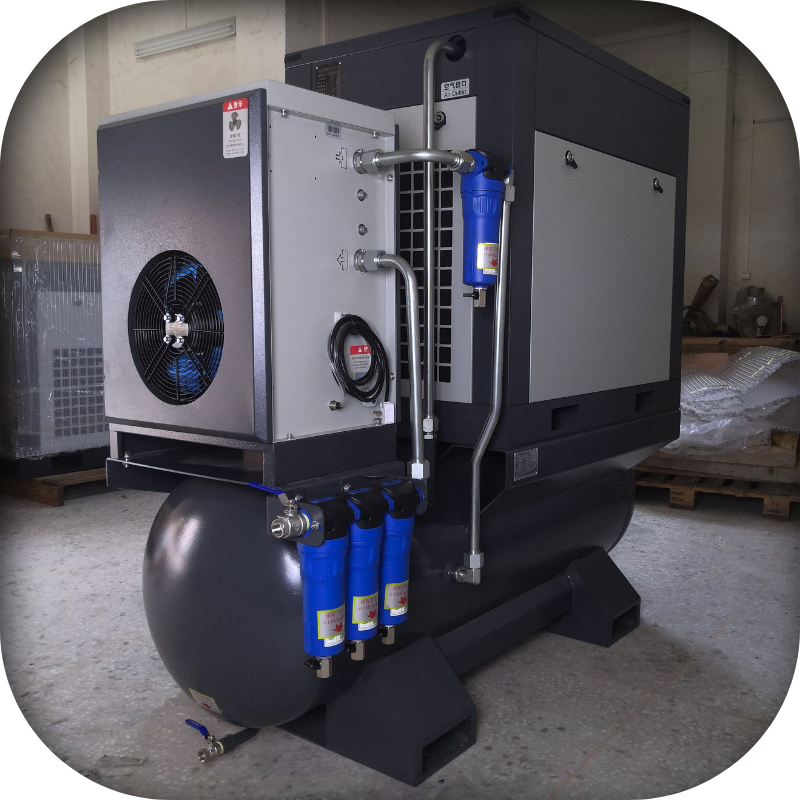

Integrating components such as air compressor, air storage tank, filter, dryer, etc. greatly saves installation space and makes the equipment layout more compact.
Integrated design simplifies the operation process, reduces operational complexity, and improves work efficiency.
Most 20 horsepower four in one air compressors use screw compression method, which has the advantages of high compression efficiency, smooth operation, and low noise.
Made with high-quality materials and advanced technology, the equipment ensures high durability and reliability, and can operate stably for a long time.

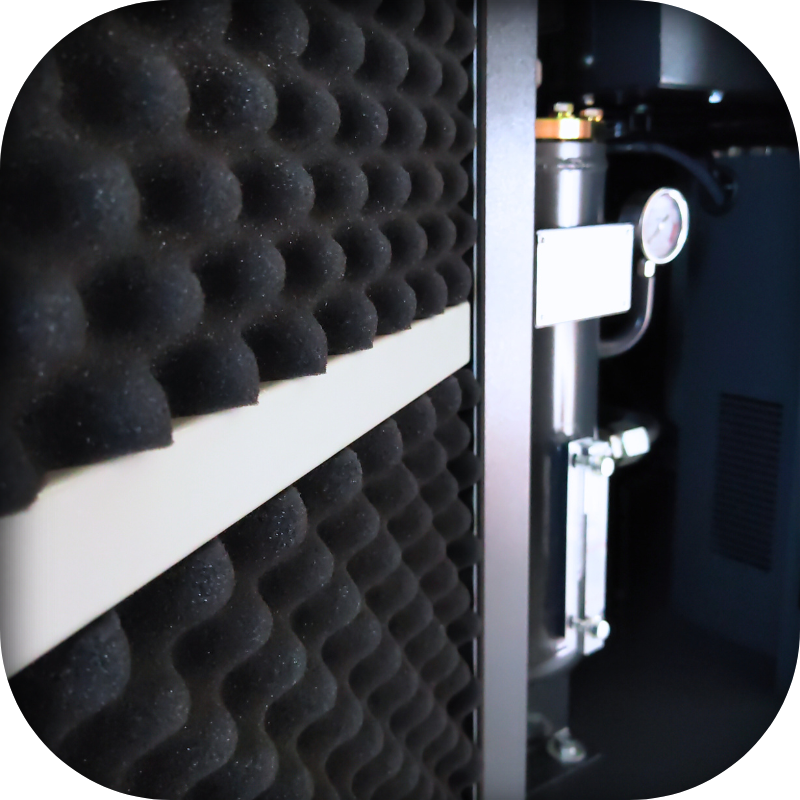

By optimizing the machine structure and using low-noise materials, the noise level during equipment operation is reduced, providing users with a more comfortable working environment.
Suitable for various industrial applications such as marine, sandblasting, painting, laser cutting, injection molding machines, etc., meeting the diverse needs of different industries.
The equipment structure design is reasonable, easy to disassemble and clean, reducing the difficulty and cost of maintenance.
Using long-life components reduces replacement frequency and downtime.
Voltage 380v50Hz, customizable voltage
 |
 |
|
Model Parameters |
Unit |
15KW |
22KW |
|
|
Rate Discharge Pressure |
Mpa |
1.55 |
1.55 |
|
|
Rate Discharge Capacity |
m³/min |
1.2(AH077) |
2.2(AH130) |
|
|
Exit Temperature of Rear Cooler |
℃ |
|
||
|
Air Inlet/Outlet |
|
G3/4 |
G1 |
|
|
Running Parameter |
|
Air Cooling |
||
|
Driving Mode |
|
Integrated |
||
|
Air Tank Volume |
L |
400 |
400 |
|
|
Air Suction Type |
Temperature |
℃ |
≤40 |
≤40 |
|
Pressure |
kg/c㎡(A) |
1.033 |
1.033 |
|
|
Relative Humdity |
% |
60 |
60 |
|
|
Main Motor |
Power |
HP/KW |
20/15 |
30/22 |
|
Speed |
rpm |
4900(326Hz) |
3400(226Hz) |
|
|
Staring Mode |
|
Variable Frequency |
||
|
Voltage/Frequency |
V/Hz |
380V/130-326Hz |
380V/90-226Hz |
|
|
Insulation Class |
|
F |
F |
|
|
Protect Level |
|
P55 |
P55 |
|
| Fan Motor |
Power |
KW |
0.28 |
0.52 |
|
Speed(50HZ) |
rpm |
1300 |
1300 |
|
|
Voltage/Frequency |
V/Hz |
380V/50Hz/3Ph |
||

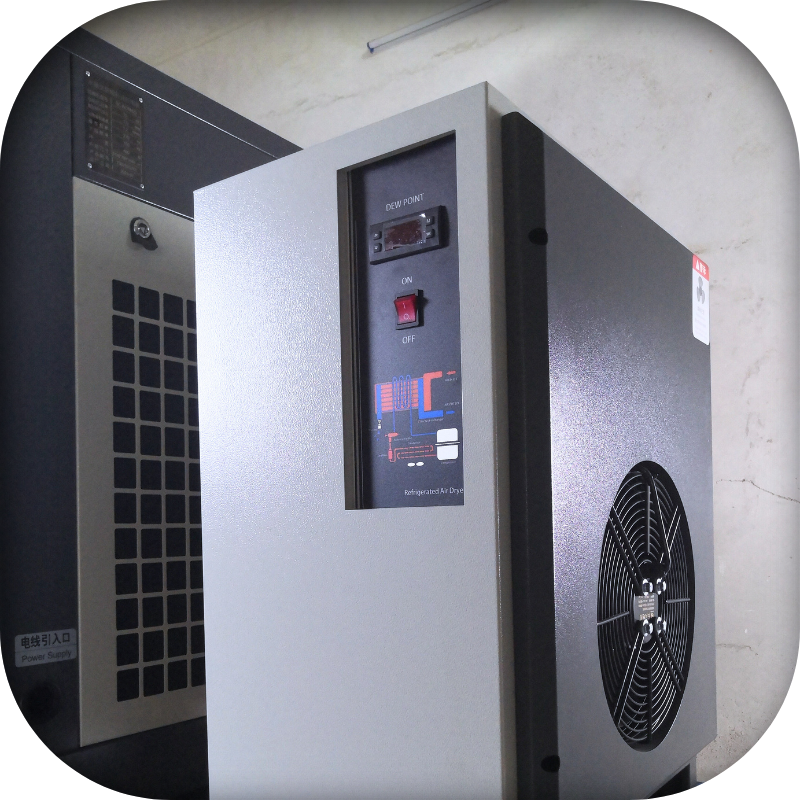

| Air Dryer |
Power |
KW |
0.52 |
0.73 |
|
Rated Holding Air Capacity |
m³/min |
2.4 |
3.6 |
|
| Voltage/Frequency |
V/Hz |
220V/50Hz/3Ph |
||
|
The Inlet Gas Temperature |
℃ |
≤65℃ |
≤65℃ |
|
| Running Parameter |
Unloading Pressure |
Mpa |
1.55 |
1.55 |
| Recovery Loading Pressure |
Mpa |
1.4 |
1.4 |
|
| Starting Pressure of Safety Valve |
Mpa |
1.7 |
1.7 |
|
| Stop Protection Temperature |
℃ |
110 |
110 |
|
| Product Size(L*W*H) |
mm |
1795*830*1650 |
1730*950*1850 |
|
| Product Weight |
kg |
420 |
480 |
|
