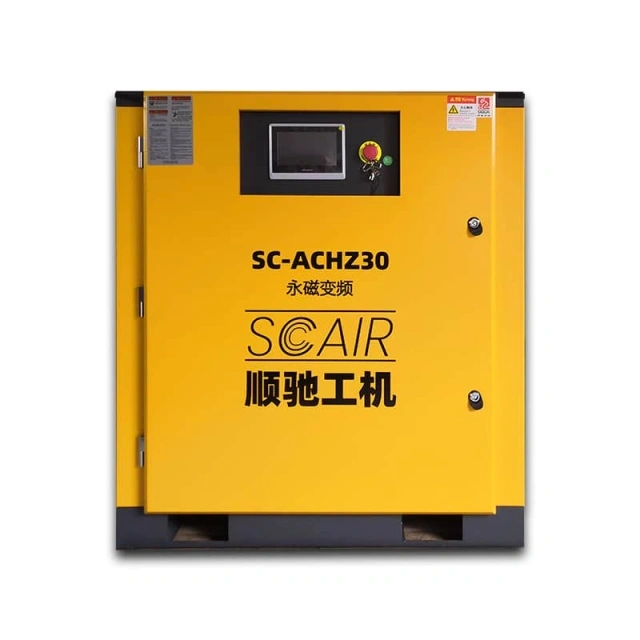

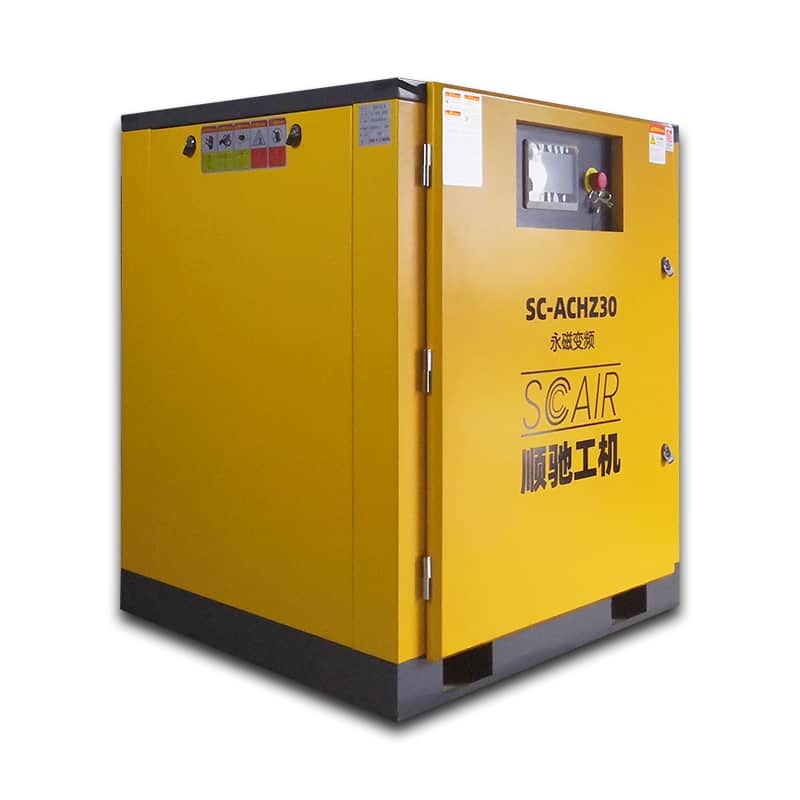

30 Horsepower Screw Air Compressor: Industrial-Grade Efficiency for Continuous Performance
The 30 HP Screw Air Compressor from DGSCEE offers high-efficiency air compression, designed for businesses that demand consistent air power. Its robust build and reliable screw technology ensure optimized energy usage, helping reduce costs in long-term industrial applications. Ideal for factories, workshops, and other industrial environments, this compressor combines power with cost-efficiency.
Enhanced Energy Efficiency and Dependability for Industrial Applications
Built with advanced screw compression technology, this 30 HP air compressor delivers stable air output while minimizing energy loss. The device's durable structure is designed for long-lasting performance, capable of continuous operation with minimal maintenance requirements. Suitable for custom installations and wholesale supply, this compressor meets the demands of various industries looking for energy-saving solutions.
High efficiency: Adopting advanced screw compression technology and high-efficiency motors to ensure high efficiency and low energy consumption during the air compression process.
Stable and reliable: The screw air compressor has a sturdy structure, smooth operation, low failure rate, and can work continuously for a long time without affecting performance.
Low noise: By optimizing the design and using low-noise materials, the noise during equipment operation is controlled at a lower level, improving the working environment.
Easy to maintain: The structure of screw air compressors is relatively simple, easy to maintain, and reduces maintenance costs and downtime.
Widely used: Suitable for various industrial applications that require high pressure and large flow of air, such as automobile manufacturing, machinery manufacturing, chemical industry, metallurgy, construction, and other industries.
Maintenance and upkeep: Regular replacement of lubricating oil, cleaning of air filters, inspection of screw wear, and fastening connections are key to maintaining good performance and extending the service life of air compressors. In addition, regular professional maintenance checks should be carried out according to the manufacturer's recommendations.
Maintenance tips
The first maintenance is required after 500 hours of use, and the oil filter and lubricating oil need to be replaced. After that, a major maintenance is required every 2500 hours of use, and the three filters and lubricating oil need to be replaced. The three filters include: air filter, oil filter, and oil-gas separator.
Target Group
Used in machines that require gas-assisted production, suitable for factory customers, such as: CNC machine tools, computer sewing machines, packaging, spraying, stamping, laser cutting machines, pharmaceuticals, food processing, precision parts, etc.
Transport packaging
Models and Parameters
|
parameter
model
|
F.A.D/Max Working Pressure
m³/min/MPa
|
Power
HP/KW
|
Voltage/ Frequency
V/50Hz
|
Cooling Mode
|
Outlet Diameter
inch
|
Dimension
mm
|
Weight
Kg
|
Ambient Temperature
|
Discharge Temperature
|
|
SC-ACBS10
|
1.0/0.8
0.9/1.0
0.72/1.2
|
10/7.5
|
380V/50Hz/3Ph
|
Air-Cooling
|
Rp1/2
|
900*670*880
|
170
|
-5℃~+45℃
|
< Ambient temperature+15℃
|
|
SC-ACBS20
|
20/15
|
1080*750*1000
|
231
|
|
2.2/0.8
2.0/1.0
1.7/1.2
|
Rp3/4
|
|
SC-ACBS30
|
3.6/0.8
3.2/1.0
2.7/1.2
|
30/22
|
Rp1
|
1080*850*1200
|
308
|
|
SC-ACBS50
|
50/37
|
1200*1000*1400
|
505
|
|
Rp1-1/2
|
|
6.3/0.8
5.25/1.0
4.5/1.2
|
|
SC-ACBS60
|
7.3/0.8
6.6/1.0
5.2/1.2
|
60/45
|
Rp1-1/2
|
1250*1000*1510
|
507
|
|
SC-ACBS70
|
9.2/0.8
8.2/1.0
7.1/1.2
|
75/55
|
R2
|
1800*1250*1670
|
1020
|
|
SC-ACBS100
|
12.6/0.8
11.0/1.0
9.5/1.2
|
100/75
|
Rp2
|
1800*1250*1810
|
1130
|
To learn more about the operaion and maintenance technology of air compressor,click the link to view more conent. Welcome to contact us and join the discusion
link:https://dgscee.com/cases/chapter-3-structure-of-screw-air-compressor-unit
